Retaining Wall Drainage: Crucial Tips for 2025

In 2025, retaining wall drainage is more crucial than ever. Proper drainage not only ensures the longevity of your retaining wall but also plays a vital role in its functionality. Without a reliable drainage system, water can accumulate behind the wall, leading to dangerous consequences like erosion, structural movement, and in severe cases, wall collapse. The force of trapped water can cause soil displacement, cracking, and even the complete failure of your retaining wall, resulting in costly repairs or replacements. Inadequate drainage is a problem that many homeowners and property managers overlook until it's too late. A well-designed drainage system protects your investment, prolongs the life of your wall, and ensures the stability of your landscape.

Retaining wall drainage refers to the methods and systems designed to control the flow of water behind and around a retaining wall. Its primary purpose is to redirect and manage water effectively, preventing the buildup of pressure that can weaken the wall and lead to damage. A well-designed drainage system works by allowing water to escape from behind the wall, reducing the risk of hydrostatic pressure that could destabilize the structure. In landscape design, effective drainage plays a key role in preserving both the integrity of the wall and the surrounding environment, ensuring the durability and health of your entire outdoor space.

1. Understanding Retaining Wall Drainage

Purpose and Importance: Water is constantly seeking the path of least resistance, which means that when it rains or snow melts, water naturally moves toward retaining walls. Without a drainage system, this water will collect behind the wall, creating immense pressure. Over time, this pressure can cause the wall to shift, lean, or even collapse. The purpose of retaining wall drainage is simple: to manage water effectively and redirect it away from the wall, preventing the buildup of pressure behind it. By allowing water to drain properly, the wall stays stable, reducing the chances of cracking or movement. Proper drainage ensures that the retaining wall can do its job without becoming a risk to the surrounding landscape. This is especially important in areas prone to heavy rainfall or where the soil is particularly saturated with water. Without proper drainage, walls are susceptible to erosion and instability, both of which are costly and disruptive problems.

1. Prevention of Wall Failure:

   • The primary benefit of a properly installed drainage system is that it prevents wall failure by reducing pressure behind the wall. If water builds up, it can create hydrostatic pressure that pushes against the wall, which over time leads to cracks, bulging, and even collapse. Effective drainage allows this pressure to be relieved, maintaining the wall's structural integrity.


2. Protection of Surrounding Landscaping and Soil Integrity:

   • When water is managed properly, it not only protects the wall but also safeguards your landscaping. Excess water that isn’t properly drained can erode the soil, causing plant roots to destabilize and leading to uneven ground or even waterlogged areas. Proper drainage helps keep the surrounding soil in place and prevents erosion, ensuring your landscape remains healthy and intact.

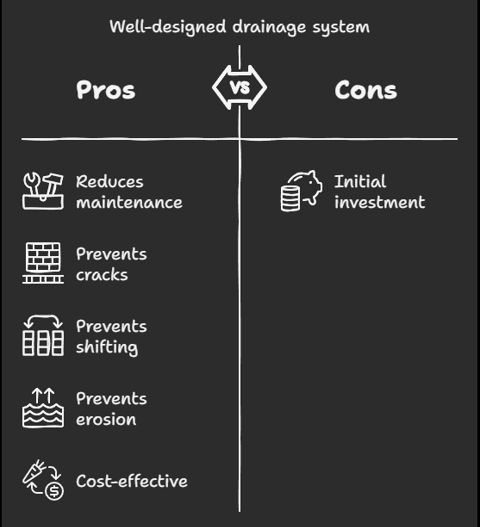

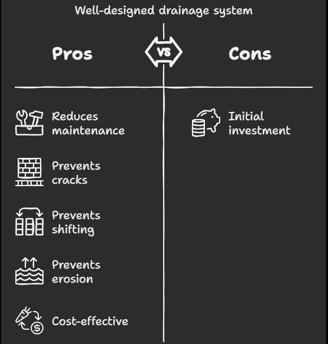

3. Reduced Maintenance Costs:

   • A well-designed drainage system lowers the risk of cracks, shifting, and erosion, which reduces the frequency of maintenance required. By effectively managing water, the wall is less likely to require costly repairs or replacements. Over time, this can save you significant money on maintenance and extend the lifespan of your retaining wall, making it a wise long-term investment.



In short, investing in the right drainage system for your retaining wall not only ensures the wall’s stability but also protects your entire landscape, saving you time and money in the future.

2. Key Components of Effective Retaining Wall Drainage

Perforated Pipe: The perforated pipe is a critical component in any retaining wall drainage system. This pipe, designed with small holes along its length, allows water to enter from behind the wall and be redirected away from the structure. Typically placed at the base of the wall, the perforated pipe collects water that naturally accumulates behind the retaining wall, ensuring that water does not build up and create harmful pressure. When installed properly, the perforated pipe helps to keep the wall dry and stable, preventing soil erosion and reducing the likelihood of wall failure due to excessive water accumulation. It's essential that this pipe is sloped away from the wall, allowing water to flow freely and ensuring optimal drainage performance.

Gravel: Gravel serves as both a filter and a conduit in the drainage system. Its primary role is to allow water to flow easily through the space behind the wall, while preventing soil particles from clogging the drainage system. The gravel acts as a buffer between the soil and the perforated pipe, ensuring that water moves freely without causing blockages. Ideally, clean, angular gravel—ranging in size from 1/2 to 3/4 inch—is used for optimal performance. It should be spread in a thick layer behind the wall, typically around 12 inches deep or more, to provide adequate space for water flow. The compacted gravel also contributes to the overall structural stability of the wall, helping to keep the retaining wall strong and in place over time.

Filter Fabric (Geotextile): Filter fabric, also known as geotextile fabric, is another crucial element in a retaining wall drainage system. This material is typically placed between the soil and gravel to prevent soil particles from migrating into the gravel layer, which could clog the drainage system. Geotextile fabric is a permeable material that allows water to pass through while blocking the movement of fine soil particles, which helps maintain the long-term efficiency of the drainage system. By using filter fabric, you ensure that the gravel layer remains clean and functional, allowing for continuous and effective drainage behind the wall. Installing this fabric at all points where the soil and gravel meet—such as under the wall's base and between the gravel and the perforated pipe—enhances the longevity and performance of your drainage system.

Together, these components—perforated pipe, gravel, and filter fabric—form the backbone of an effective drainage system, ensuring that your retaining wall can withstand the test of time and weather.

3. Installation Techniques for Optimal Drainage

Footing Drain: A footing drain is one of the most crucial components in an effective retaining wall drainage system. It’s installed at the base of the retaining wall, just below the footing, to collect and redirect water that naturally accumulates behind the structure. The footing drain typically consists of a perforated pipe placed in a trench filled with gravel. As water seeps through the wall and into the gravel, it enters the perforated pipe, which then directs the water away from the wall, preventing excessive pressure buildup. The trench should be sloped away from the wall to ensure that water moves efficiently toward the designated drainage path. By installing a footing drain, you can significantly reduce the risk of wall failure and maintain the stability of your retaining wall, even in areas with high moisture levels or heavy rainfall.

Backfill and Compaction: Proper backfilling is essential for ensuring the long-term stability of your retaining wall and maximizing drainage efficiency. Once the footing drain is in place, the area behind the wall is filled with gravel to facilitate the movement of water away from the wall. This gravel backfill not only improves the flow of water but also adds structural integrity to the wall. The gravel should be clean, angular, and free of large debris, and it should extend at least 12 inches behind the wall—though a deeper gravel layer is often more beneficial for optimal drainage.

After placing the gravel, it’s crucial to compact it properly to avoid settling over time, which could lead to shifts or cracks in the wall. Compaction ensures that the gravel forms a stable foundation that supports the wall and prevents water from pooling behind it. A well-compacted backfill also reduces the likelihood of soil erosion and helps maintain the overall stability of the landscape.

Weep Holes: Weep holes are small openings strategically placed along the bottom of the retaining wall, typically at regular intervals, to allow water to escape from behind the wall. These holes are particularly important for taller walls, where hydrostatic pressure (the pressure exerted by accumulated water) can become significant. Without weep holes, trapped water behind the wall can create excess pressure, leading to cracks, bulges, or even a complete collapse of the structure over time.

The installation of weep holes ensures that water doesn’t get trapped behind the wall, relieving pressure and helping to prevent damage. These holes should be placed low along the base of the wall, often every 4 to 6 feet, depending on the size of the wall. They can be covered with gravel or stone to prevent dirt and debris from clogging them while still allowing water to pass through freely. Properly designed and installed weep holes are essential for maintaining the integrity of retaining walls, particularly in areas with high rainfall or moisture content.

Together, these installation techniques—footing drains, gravel backfill and compaction, and weep holes—ensure that your retaining wall remains stable, functional, and resistant to water damage for years to come.

4. Common Retaining Wall Drainage Systems

Natural Drainage Techniques:

Gravel Base:
A gravel base is one of the simplest and most effective natural drainage techniques for retaining walls. By placing a thick layer of gravel at the base of the wall, you create a natural pathway for water to flow freely away from the structure. The gravel acts as a filter, preventing soil particles from clogging the drainage system while also allowing water to move freely through the layer. This technique reduces hydrostatic pressure against the wall and helps prevent water buildup behind the structure. In addition to its drainage benefits, the gravel base improves the overall structural stability of the wall by creating a solid, stable foundation. Ideally, the gravel base should extend at least 12 inches behind the wall, though a deeper gravel layer will yield better results, particularly in areas prone to heavy rainfall or high water tables.

Angular Aggregate:
Using angular aggregate—clean, crushed stone or gravel—is particularly beneficial for drainage systems behind retaining walls. The jagged edges of angular aggregate interlock, preventing shifting and providing better stability compared to rounded gravel. This type of gravel also improves water flow, as it creates more void space between the stones, allowing water to pass through easily. For optimal drainage, the angular aggregate should be between 1/2 and 3/4 inch in size, ensuring that water flows freely while also keeping soil particles from entering the system. By combining an angular gravel base with other drainage techniques, such as perforated pipes or weep holes, you can ensure a long-lasting and efficient drainage system that supports the structural integrity of your retaining wall.

Engineered Drainage Solutions:

French Drain:
A French drain is an engineered solution designed to efficiently manage water flow, especially in areas with high water tables or poor natural drainage. It consists of a perforated pipe placed in a trench that is filled with gravel or crushed stone. The pipe collects water that collects behind the wall and redirects it away from the structure, preventing the buildup of pressure that could cause the wall to shift or fail. French drains are highly effective when combined with natural techniques like a gravel base, creating a multi-layered drainage system that offers maximum water management. This system is particularly useful in areas with heavy rainfall or high moisture content in the soil. By channeling water away from the wall, French drains help maintain the stability and longevity of the retaining structure.

Dry Well:
A dry well is another engineered solution that works to manage excess water by allowing it to percolate into the surrounding soil. A dry well is essentially an underground cavity filled with gravel or a pre-fabricated unit that captures water and facilitates its absorption into the earth. This solution is often used in conjunction with other drainage systems to handle large volumes of water that need to be absorbed rather than redirected. Dry wells are ideal for properties where water is naturally absorbed by the soil, such as those with sandy or well-drained terrain. By providing a place for water to collect and gradually seep into the ground, dry wells prevent pooling or flooding behind the retaining wall and enhance the overall effectiveness of the drainage system.

5. Troubleshooting Common Retaining Wall Drainage Problems

Identifying Drainage Issues:

Over time, even the most carefully designed drainage systems can face problems. Identifying these issues early is crucial for preventing significant damage to your retaining wall and the surrounding landscape. Common signs of drainage problems include:

• Leaning Walls: If your retaining wall starts to lean or bow outward, it may be due to excessive water pressure building up behind it. This is often a sign that the drainage system is failing to redirect water effectively, leading to instability.

• Water Pools: Standing water or pools at the base of the wall, or even on the surface of the soil behind the wall, suggest that the drainage system isn’t functioning properly. Water pooling can cause erosion and wall movement over time.

• Cracks or Bulges: Cracks or bulges in the wall can indicate that water is trapped behind the structure, creating excessive pressure. This can eventually lead to wall failure if left unaddressed.


Solutions for Drainage Failures:

If you’ve identified any of the above signs, it’s essential to take action to fix the problem as soon as possible. Here are some common solutions:

• Excavation: For serious drainage issues, excavation may be necessary. This involves removing the soil behind the wall to inspect the drainage system. Damaged or clogged pipes may need to be replaced, or the entire drainage system might need to be upgraded to ensure water flows away from the wall effectively.

• Adding or Repairing Weep Holes: If the wall is already showing signs of pressure buildup, adding new weep holes or repairing existing ones can help relieve trapped water. Weep holes are small openings in the wall that allow water to escape, reducing pressure and preventing further damage. They should be strategically placed to ensure water is able to flow out evenly across the wall’s base.


  Prevention:

While drainage issues can arise over time, regular maintenance and proactive care can help prevent most problems from occurring. Here are some essential tips for keeping your drainage system in optimal condition:

• Regular Inspections: Schedule periodic inspections of your retaining wall and drainage system, especially after heavy rains or extreme weather. Look for signs of damage, like leaning walls or cracks, and address them early to avoid costly repairs.

• Keep Drainage Paths Clear: Ensure that the gravel base, drainage pipes, and weep holes remain free from debris, leaves, or soil buildup. Regularly clear any blockages to maintain water flow and prevent clogging.

• Consult Professionals: If you’re unsure about the condition of your drainage system or if you encounter persistent issues, consulting a professional landscaper or hardscaper can provide expert advice. They can assess your system, recommend improvements, and perform any necessary repairs.

By staying proactive and addressing drainage issues promptly, you can ensure the longevity of your retaining wall and avoid the costs and headaches of major repairs down the road.

6. FAQ about Retaining Wall Drainage

Does a 2-Foot Retaining Wall Need a Drainage Pipe?
Even smaller retaining walls, like those that are 2 feet tall, require drainage systems to prevent water buildup behind them. Water naturally seeks the path of least resistance, and if it accumulates behind a wall, it creates hydrostatic pressure that can lead to wall movement or even failure. Drainage systems, such as perforated pipes, allow water to flow away from the wall, reducing the risk of structural damage. A drainage pipe is crucial for maintaining the stability of the wall, regardless of its size, and ensures that excess water doesn’t erode the soil or compromise the wall’s foundation.

How Deep Should Retaining Wall Drainage Be?
For effective drainage, the depth of gravel and drainage systems behind a retaining wall should generally be at least 12 inches. This gravel layer allows water to flow freely and prevents clogging, providing space for the perforated pipe to redirect water away from the wall. In some cases, deeper gravel may be required, especially in areas with high water tables or significant rainfall. The goal is to ensure that the water has sufficient space to travel without causing pressure buildup against the wall. A well-compacted gravel base combined with proper drainage pipes offers long-term stability for the retaining structure.

What is the Best Drainage for a Wood Retaining Wall?
For wood retaining walls, it’s essential to choose lightweight drainage materials that won’t add excess weight to the structure. Pea gravel is one of the best options, as it is small, clean, and effective at facilitating water flow while preventing clogging. Additionally, pea gravel reduces the risk of pressure buildup behind the wall, which can cause shifting or decay over time. Other lightweight materials, like crushed stone, may also be used, but it’s crucial to avoid heavy aggregates that can destabilize the wood structure. Ensuring proper drainage behind a wood retaining wall is vital for preserving its longevity and preventing water damage or decay.

7. Conclution: Ensuring Long-Term Stability with Proper Drainage

Summary
Proper drainage is essential for the longevity and stability of retaining walls. Without an effective drainage system, water can accumulate behind the wall, creating excessive pressure that can lead to wall failure, erosion, and costly repairs. Proper drainage not only protects the wall but also safeguards the surrounding landscaping by reducing soil erosion and preventing water pooling. Additionally, a well-designed drainage system reduces long-term maintenance costs, making it a crucial investment in the durability of your retaining wall.

Recap the Key Points:

• Proper drainage prevents wall failure and protects the surrounding landscaping.

• Drainage systems reduce maintenance costs and improve the overall functionality of the retaining wall.

• Effective drainage solutions like gravel, perforated pipes, and weep holes ensure long-term wall stability.
